Portable USB digital microscope with LCD display. Magnification: 20x, 200x, 500x. Digital camera: 5Mpx

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
20 — 500
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope
Availability

Product ID 61023
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004327
Package size (LxWxH) 13x2.8x5.9
Shipping Weight 1.5
Description

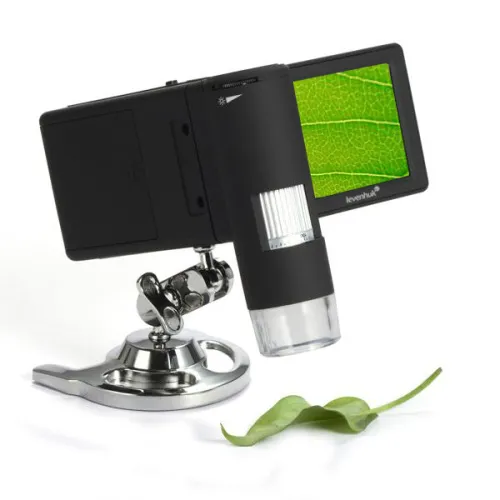

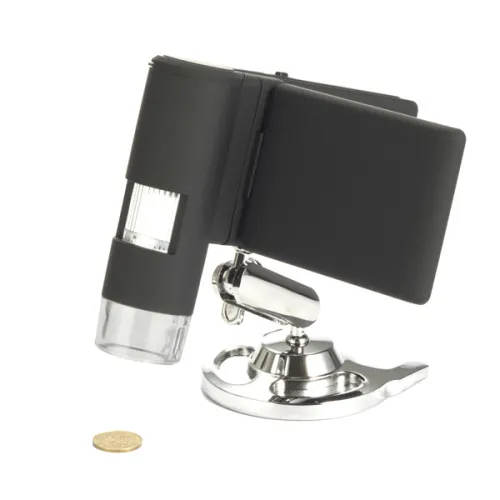

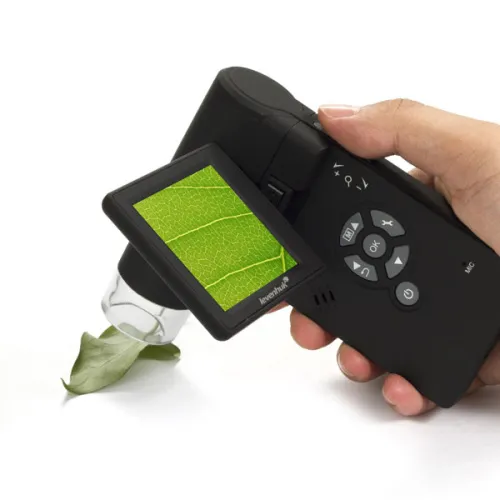

Levenhuk DTX 500 Mobi is a portable microscope with a built-in 3-inch color LCD display. This model produces magnification up to 500x and features smooth digital zoom up to 4x. Levenhuk DTX 500 Mobi is perfectly suited for microscopic observations of any surfaces, both at home and outside. All of this makes this microscope an excellent gift for any schoolchild. A handheld microscope is often used to check the quality of goods in stores and detect any possible mold growing on fruit and vegetables.

Levenhuk DTX 500 Mobi Digital Microscope allows you to easily take pictures and record videos of observed objects. All files created during your observations are stored to the microSD card. All you need to do to transfer your images and videos to your PC is connect the microscope to it using the USB cable included in the kit. The kit also includes special software allowing you to edit created files and perform precise measurements of linear sizes, radiuses and angles with an accuracy of 1 micrometer or better.

Levenhuk DTX 500 Mobi Digital Microscope is powered by the Li-ion battery included in the kit, which provides for up to 4 hours of standalone work.

Microscope’s body is rubber-armored, which makes it pleasant to the touch and also provides for a comfortable grip and prevents the device from slipping out of your hands.

Features:

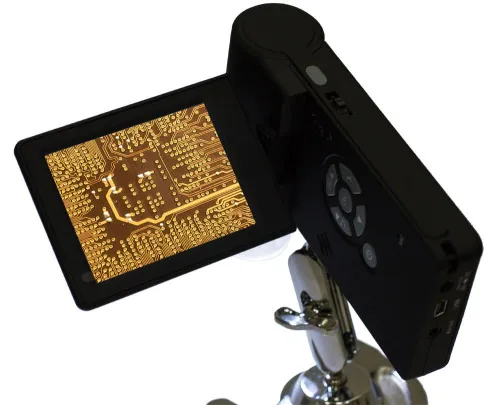

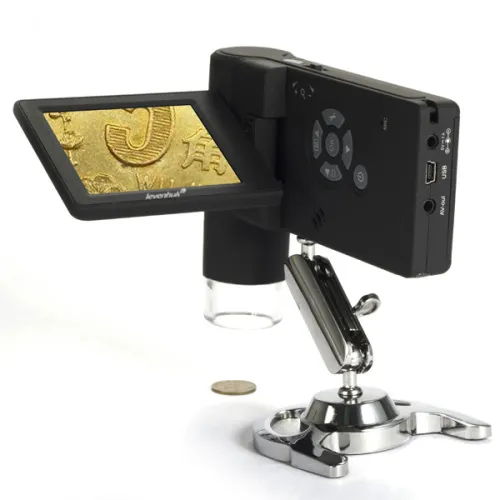

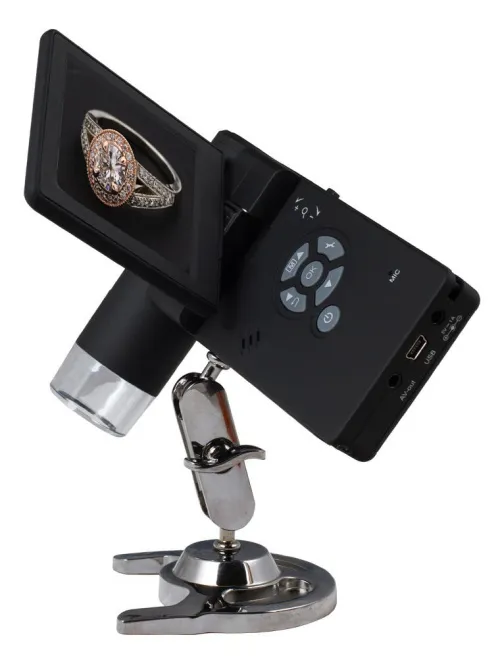

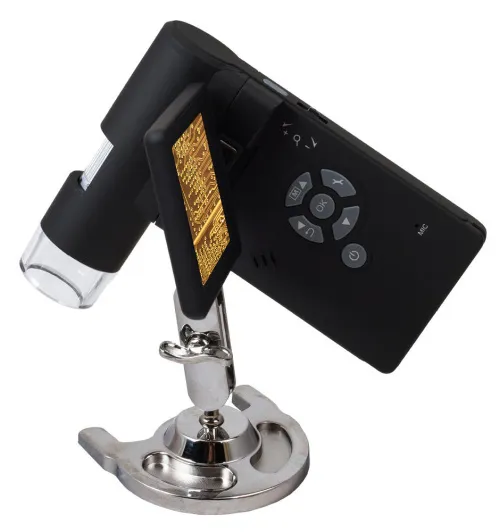

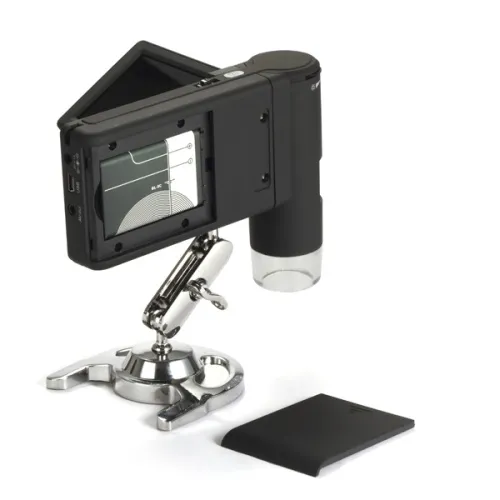

  • Rotatable 3" color LCD display
  • Support of microSD cards with capacity up to 32 Gb
  • PC connection via USB 2.0 interface
  • AV output for connecting to TV or projector
  • Able to take photos/videos
  • Automatic exposure and white balance

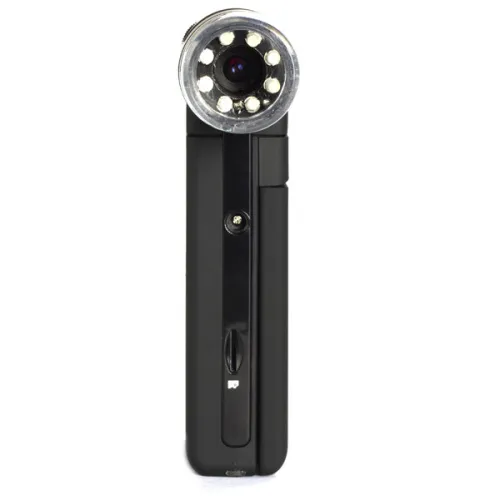

  • 8 white LEDs with adjustable brightness
  • 4x digital zoom

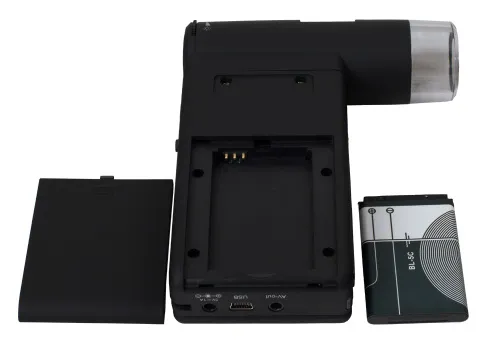

  • Li-ion rechargeable battery
  • Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
  • Сompatible with Windows and Mac OS

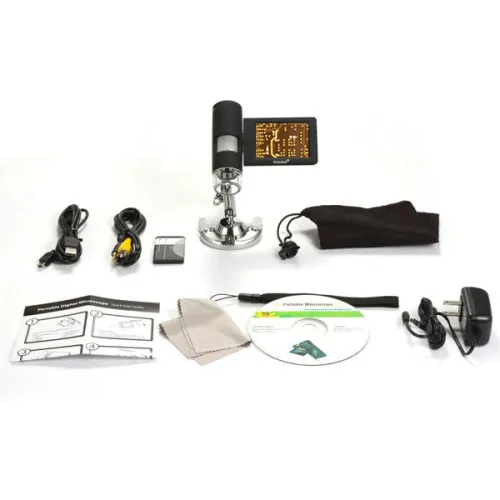

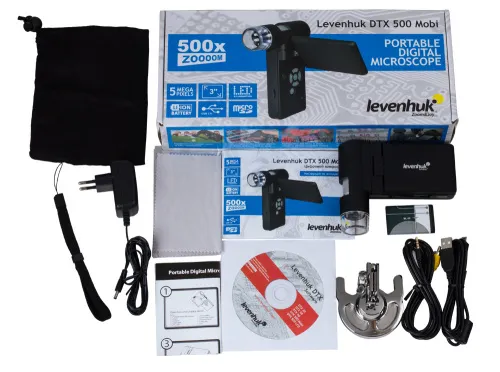

The kit includes:

  • Levenhuk DTX 500 Mobi Microscope

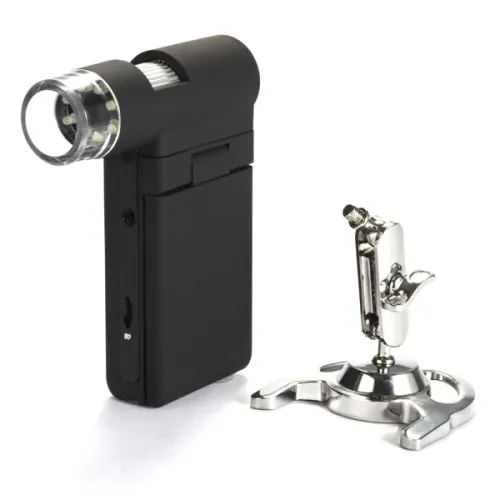

  • Tripod
  • Adapter*
  • Software CD
  • USB cable
  • AV cable
  • Li-ion rechargeable battery
  • Pouch
  • Strap
  • Cleaning wipe
  • User manual and lifetime warranty

Recommendations on using the software:

  • In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.
  • Once connected to the PC, it does not support the magnification change function.

Levenhuk DTX 500 Mobi Digital Microscope is not compatible with external digital cameras.

* Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

specifications
Product ID 61023
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004327
Package size (LxWxH) 13x2.8x5.9
Shipping Weight 1.5
Type digital, portable
Head digital screen/PC monitor
Optics material optical glass
Nozzle 3" rotatable color LCD screen
Magnification, x 20 — 500
Focus manual, 0–30mm
Body plastic
Illumination LED
Brightness adjustment
Power supply 110–240V adapter , 50/60Hz, 5V, 1A output, Li-ion battery 3.7V/1050mAh
Power supply: batteries/built-in battery yes
Additional battery-operated work: 4 hours; charging time: 5 hours
Ability to connect additional equipment supports microSD memory cards up to 32GB (not included)
User level beginners, experienced users
Assembly and installation difficulty level easy
Application for applied research
Illumination location upper
Research method bright field
Pouch/case/bag in set pouch
Maximum resolution 12MP, 8MP, 5MP, 3MP, 1.3MP, VGA
Megapixels 5 (with interpolation up to 12)
Video recording yes
Image format *.jpg
Video format *.avi
Frame rate 30 frames per second
Software, drivers photo and video processing software with objects measurement feature
Output USB 2.0
System requirements OS Windows 7/8/10, Mac 10.6 ~ 10.15; 1.8GHz Intel P4 and above, 512MB RAM, 32MB video card, USB 2.0, CD-ROM
Questions and Answers
Papailiou Giorgos (2019.03.29)
Thank you for your fast answer!Yes,there is something more:can I adjust something in the lens so to measure immediately the size?Like a ruler with 0,02mm deviation?
Customer service:
Dear Papailiou Giorgos, I regret to inform you that it is impossible to measure the size immediately.
Papailiou Giorgos (2019.03.28)
Dear sirs,I'm thinking to buy this DTX500 Mobi model but I want to ask you about measuring some 0,02mm and bigger , should I capture the image and processing it in my computer or can I directly measure it?Thank you.
Customer service:
Dear Papailiou Giorgos, thank you for interest in Levenhuk products! Yes, you need to capture the image, transfer it to your PC and measure it with the help of special software that comes in the kit. Is there any additional information you might need?
Alex Pamp (2018.03.16)
how can I measure linear sizes of observed objects?
Customer service:
Levenhuk DTX 500 Mobi Microscope allows for precise measurements of linear sizes, angles, and radiuses using a special MicroCapture software.
Elwis Mett (2018.03.14)
The description on the website says that this microscope is suitable for precise measurements of observed samples. Does the kit include a calibration scale?
Customer service:
Levenhuk DTX 500 Mobi Microscope Kit does not include a calibration scale.
Russ (2018.03.14)
My application is on a painted bridge surface, looking at scratches in the paint. I need 5 micrometre resolution. Can I put the clear shroud onto the surface to stabilize the microscope relative to the surface? If so, does this give me a fixed magnification without the zoom at that distance? If so do you sell accessory shrouds for say 20, 50, or 100 times magnification. Since I must ultimately measure the scratches, a fixed magnification suits my needs better. I am assuming that a fixed lens distance yields a fixed magnification...is that correct?
Customer service:
Dear Russ, thank you for interest in Levenhuk products! This model should fit your needs. Available resolution is 12 Mpx, 8 Mpx, 5 Mpx,3 Mpx, 1.3 Mpx, VGA.
Accuracy of the measurement is 1 micrometer. Is there any additional information you might need?
Kate Cobb (2017.01.09)
Good afternoon! Will I be able to see bacteria and their colonies and determine their genus?
Customer service:
Levenhuk DTX 500 Mobi digital microscope is not designed for such purposes. Bacteria can be observed only with powerful microscopes (magnification starts at 1200x) and only by using special staining techniques. Consider Levenhuk D320L 3.1M Digital Monocular Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-d320l-base-3m-digital-monocular-microscope/ .
Pedro Bishop (2016.07.26)
Hello! Can I use this microscope to measure particle size of microcalcite, chalk, gypsum, limestone, etc.? Required range - 2-50 microns (0.002 mm - 0.05 mm).
Customer service:
Yes, Levenhuk DTX 500 Mobi Digital Microscope is suitable for your purpose.
Saul Harvey (2016.02.07)
Hello! Can I turn the lighting off ? Or is it always working?
Customer service:
Yes, you can turn the illumination off.
Clay Weaver (2016.02.04)
Hello! The microscope has 500x magnification power, right? Then why the focus wheel has only 260 marks? Those marks mean magnification level, right? Why I get different image resolution on different computers? One computer gives me 640x480 images, other - 1024. Do you have similar to this but more powerful microscopes?
Customer service:
Yes, the maximum magnification power of the microscope is 500x. Marks on the focus wheel are not related to magnification power. Image resolution can be changed through the software. Levenhuk DTX 500 Mobi is the most powerful model in the Levenhuk DTX series.
Michaele Tompson (2015.10.17)
I have blurry images. At any resolution. I connect it to my laptop and use PortableCapture software. At some point it stopped making images and videos altogether, even restarting didn't help. Please help
Customer service:
Please download and install the latest version of the software from this page (References and Downloads tab)
Mr. Smith (2015.09.03)
I don't get how to set 5Mpx. I have 1.3 by default, I want 5Mpx.
Customer service:
The Levenhuk DTX 500 Mobi digital microscope is equipped with 5Mpx digital camera (interpolated to 12Mpx). To set the desired resolution you need to press the Wrench key button (Settings), select Resolution and set image resolution with arrow buttons and OK button.
Matt Martin (2015.05.23)
Hello, I want a digital microscope to observe infusoria, the budget is $150 or less, please help me choose.
Customer service:
Levenhuk DTX 500 Mobi Digital Microscope is not suitable for your purpose. Please consider Levenhuk Rainbow 2L PLUS Microscope - http://www.levenhuk.com/catalogue/microscopes/levenhuk-rainbow-2l-plus-microscope/ .
Nicki Baker (2015.03.20)
so what's the optical magnification of this microscope?
Customer service:
The optical magnification of the Levenhuk DTX 500 Mobi digital microscope is 10-60x.
Nicki Baker (2015.03.20)
If the battery has run out, will it work connected to a laptop?
Customer service:
After complete discharge of the battery the Levenhuk DTX 500 Mobi digital microscope won't turn on if you connect it to a laptop.
Marco (2014.11.04)
8 years old kid. She wants to see bacteria. Is it possible to observe infusoria at least?
Customer service:
Levenhuk DTX 500 Mobi is not suitable for these purposes. To observe bacteria you will need a laboratory microscope. For example, Levenhuk 320 BASE Biological Monocular Microscope - http://www.levenhuk.com/catalogue/microscopes/levenhuk-320-base-biological-monocular-microscope/ .
