UA Levenhuk DTX 50 Digital Microscope
Found it cheaper?
Get the same price + gift!
The price is valid only for the online store and may differ from the prices in retail stores.
USB digital microscope with tripod. Magnification: 20–400x. Digital camera: 1.3Mpx
Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
20 — 400
How much the size of a sample increases when you observe it through a microscope
Children (3-7 year old), for applied research
Application and use of the microscope
| Product ID | 61021 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555004303 |
| Package size (LxWxH) | 2.4x8.3x5.9 |
| Shipping Weight | 0.8 |
Description

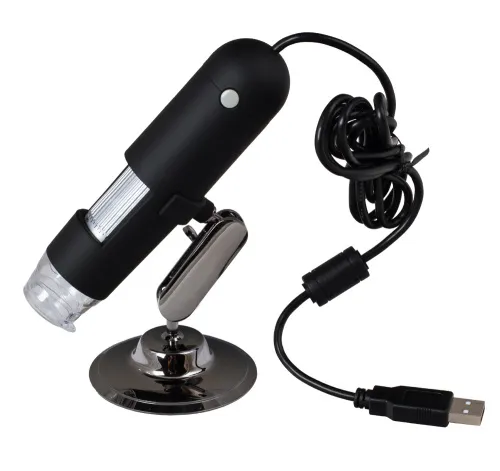

Levenhuk DTX 50 Digital Microscope is a modern USB digital microscope capable of significant magnification of up to 400x and equipped with a 1.3 Mpx digital camera that allows you to take pictures and record videos of observed samples. This model can be applied in many different areas: in electronics, jewelry, biology, zoology, and more. Convenient tripod is included in the standard kit.
Microscope is connected to a PC or laptop via standard USB 2.0 cable. Observation of samples and editing of captured images are done through the easy-to-use image processing software that is included in the kit. In addition to image processing features allowing you to take and edit images and videos, the software is also capable of measuring linear sizes, perimeters, radiuses and different angles in observed samples.

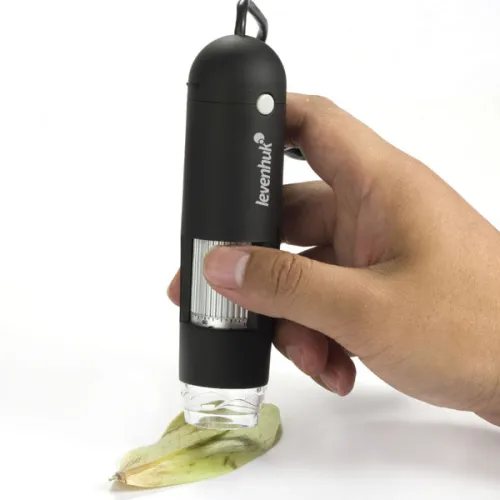

Levenhuk DTX 50 is very easy to use and doesn’t require any special knowledge or skills. Due to its compact size this microscope is highly suitable for home use. The microscope may be used with the tripod included in the kit as well as without it.
Microscope’s body is rubber-armored, which makes it pleasant to the touch and also provides for a comfortable grip and prevents the device from slipping out of your hands.
Features:
- Power supply via USB

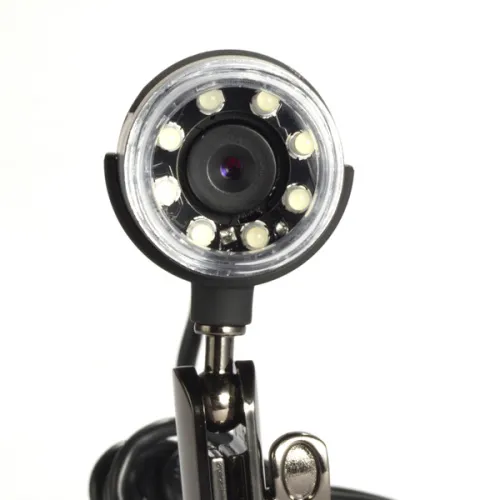

- 8 white LEDs with adjustable brightness
- Real-time observations on your PC monitor
- Able to take photos/videos
- Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
- Wide range of applications
- Сompatible with Windows and Mac OS

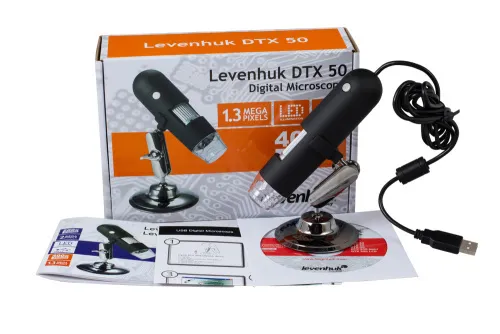

The kit includes:
- Levenhuk DTX 50 Microscope
- Convenient removable tripod
- Protective plastic objective lens cap
- Software CD
- USB cable
- User manual and lifetime warranty
Recommendations on using the software:
In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.
Levenhuk DTX 50 Digital Microscope is not compatible with external digital cameras.
specifications
| Product ID | 61021 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555004303 |
| Package size (LxWxH) | 2.4x8.3x5.9 |
| Shipping Weight | 0.8 |
| Type | digital |
| Head | digital screen/PC monitor |
| Optics material | optical glass |
| Magnification, x | 20 — 400 |
| Focus | manual, 0–150mm |
| Body | plastic, rubberized |
| Illumination | LED |
| Brightness adjustment | ✓ |
| Power supply | 5V DC via USB cable |
| User level | for children, beginners |
| Assembly and installation difficulty level | extremely simple |
| Image | 1600x1200, 1280x720, 640x480 |
| Application | children (3-7 year old), for applied research |
| Illumination location | upper |
| Research method | bright field |
| Megapixels | 1.3 |
| Video recording | yes |
| Image format | *.jpg |
| Video format | *.avi |
| Software, drivers | photo and video processing software with objects measurement feature |
| Output | USB 2.0 |
| System requirements | OS Windows 7/8/10, Mac 10.6 ~ 10.10; 1.8GHz Intel P4 and above, 512MB RAM, 64MB video card, USB 2.0, CD-ROM |
References
and downloads
and downloads
Questions and Answers
Elliott (2019.03.24)
Is there a link to the software? I can't use the disc.
Thank you.
Thank you.
Customer service:
Dear Elliott, thank you for your inquiry. All software updates are available in References and Downloads Tab. Here is download link: https://loc.levenhuk.com/upload/uf/401/fpbxwpuh826c0rha2pa0hhhq1ud25es1/Levenhuk_DTX_50_MicroCapture_Basic_3.1.1_Software_Win_Mac.zip
Is there any additional information you might need?
Zack Dickson (2018.03.14)
what objects can be seen through this model? can I observe opaque samples?
Customer service:
Levenhuk DTX 50 Digital Microscope allows you to observe opaque samples such as coins, electronic circuits, etc. There’s also a possibility of biological use.
Violetta (2017.10.22)
What ready-to-use slide sets would you recommend for observatio ns with this microscope?
Customer service:
You can choose any set from our catalog here - https://www.levenhuk.com/catalogue/accessories/microscope-accessories/microscope-experiment-sets/
.
Violetta (2017.10.22)
Tell me please what objects can be seen through this microscope? Starting from the largest objects (coins, for example) and ending with the tiniest thing. We consider buying it for a 11 yo teenager… image transferring on a PC display is a big plus, as he has myopia
Customer service:
This microscope is used for work that Doesn’t require high magnification. The model is suitable for observations of objects of any size.
Irvin Dot (2017.10.20)
Hello! Does this microscope model support UVC (USB Video Class)? So that it could be used with any operating system (computer sees it as a video camera without any drivers)
Customer service:
Levenhuk DTX 50 Microscope is compatible with Win 7/8/10 and Mac 10.6~10.10. UVC (USB Video Class) is not supported.
max lintott (2016.10.04)
Are there any Windows 7 Drivers that would assist as potentially struggling connecting to usb 3.0?
Customer service:
Dear Mr.Lintott,
Thank you for your request.
DTX50 Microscope is connected to a PC or laptop via standard USB 2.0 cable.
The software for downloading can be taken from our website: https://loc.levenhuk.com/upload/uf/6cf/8l1h8a1d3l813vl80cso0e31rs7i8l76/lvh-software-microcapture-2-0.zip
Ross Bailey (2016.09.09)
Can I use this model to detect tiny parasites (0.2-0.4 mm diameter), for example dust mites?
Customer service:
Levenhuk DTX 50 Microscope is not suitable for your purpose. Please consider Levenhuk Rainbow 2L PLUS Microscope - /catalogue/microscopes/levenhuk-rainbow-2l-plus-microscope/.
Pedro Bishop (2016.07.27)
Hello again! I already asked you about Levenhuk DTX 500 Mobi... but this one is cheaper, features 400x magnification... is it suitable for measuring particle size in the range of 2-50 microns (0.002 mm - 0.05 mm)?
Customer service:
Yes, Levenhuk DTX 50 Digital Microscope is suitable for measurements in the range of 2-50 microns.
Walter May (2016.03.08)
What microscope would you advise me for searching plant pests? (sometimes they are 0.5-1 mm in diameter). I'd like to buy a model with the ability to transfer produced images to PC.
Customer service:
Levenhuk DTX 50 Digital Microscope is great for your purpose. But we would recommend something more portable, for example Levenhuk DTX 500 Mobi Digital Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-dtx-500-mobi-digital-microscope/
.
James Craig (2015.12.22)
what's the microscope's optical zoom? What kind of optics does it have?
Customer service:
Levenhuk DTX 50 is a digital microscope. The optics are made of optical glass.
Elias Beasley (2015.11.23)
I'm curious... is it possible to see a human hair structure through this instrument?
Customer service:
Yes, it is possible with Levenhuk DTX 50.
Marina Ortis (2015.04.27)
Hello, I can't decide between DTX 30 and DTX 50. As far as I can see, DTX 30 has better camera (2 Mpx interpolated to 5), DTX 50 produces higher magnification (up to 400x), but the camera is less than 2 Mpx. Just tell me, which one provides better images? The one with more Mpx? But if I talk from my experience with digital photography, 2 Mpx cameras don't provide the best images in terms of quality....
Customer service:
Levenhuk DTX 50 Digital Microscope provides images of higher quality.
Lydia Crisp (2015.03.05)
Ok, but I asked you about depth of field, not about magnification.
Customer service:
The depth of field will be different depending on focus and magnification values.
Lydia Crisp (2015.03.04)
what about the depth of field?
Customer service:
To obtain the maximum magnification power of the Levenhuk DTX 50 microscope, you should bring the microscope really closely to the observed object. With a focal length of 2-3 cm, the magnification will be around 20x.
Paul Jackson (2015.02.04)
Can I install this software on the tablet?
Customer service:
It depends on your operating system of choice. You can try to download and install the software using the links provided in the "References and Downloads" section.
Paul Jackson (2015.02.04)
Hi! Can I connect this microscope to my tablet? It has a USB port. Will I be able to use it without installing the software?
Customer service:
You can connect Levenhuk DTX 50 to your tablet via USB, but software installation is still required.
Andy (2014.12.01)
Hello! Can I observe stone and metal samples and their structure with this model?
Customer service:
Yes, Levenhuk DTX Microscopes are created for observing opaque objects.
Nick Quinn (2014.10.03)
Hello!
Is it necessary to buy usb-camera? Or is this model already equipped with it?
Thank you.
Is it necessary to buy usb-camera? Or is this model already equipped with it?
Thank you.
Customer service:
The Levenhuk DTX 50 model is equipped with a built-in digital camera, you don't have to purchase it separately. Submit your question
