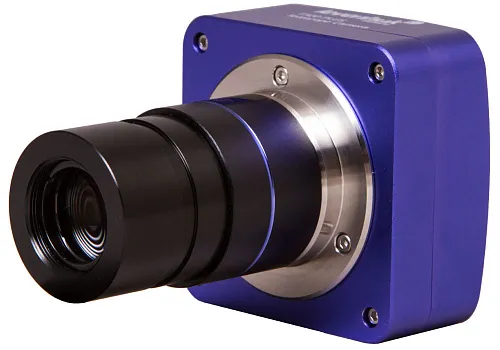

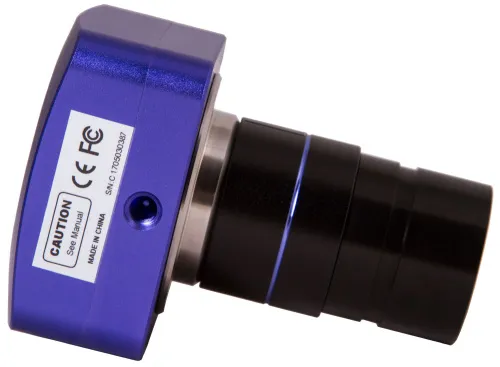

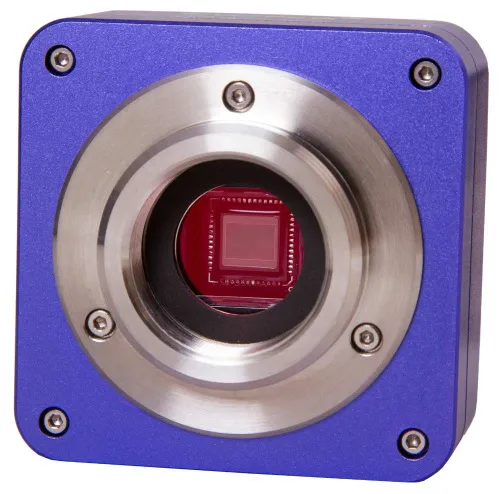

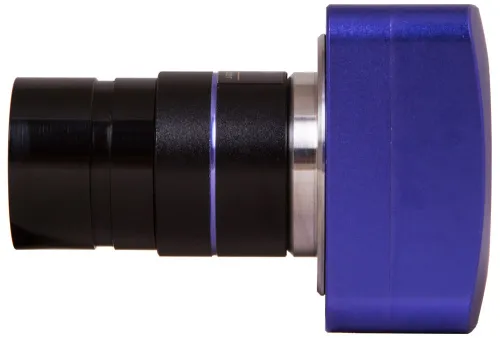

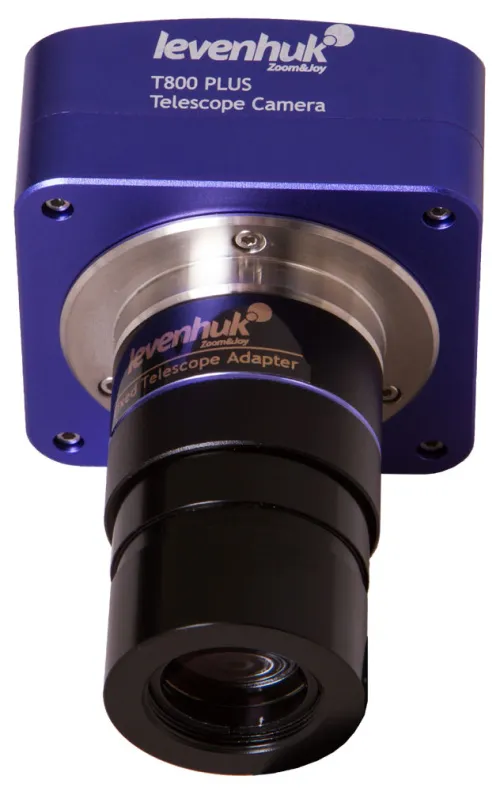

Levenhuk T800 PLUS Digital Camera
Camera for telescope. Designed for astrophotography
The Levenhuk T800 PLUS Digital Camera is the most powerful model of the Levenhuk T PLUS series. This 8-megapixel camera allows you to take pictures with a resolution of up to 3264x2448 pixels. You can watch the night sky and large astronomical objects with incredible detail. The camera allows you to photograph planets of the Solar System and the Mo... more
The Levenhuk T800 PLUS Digital Camera is the most powerful model of the Levenhuk T PLUS series. This 8-megapixel camera allows you to take pictures with a resolution of up to 3264x2448 pixels. You can watch the night sky and large astronomical objects with incredible detail. The camera allows you to photograph planets of the Solar System and the Moon. With its help, you can make fascinating videos about space or broadcast your observations online.
This camera works with any telescopes of any manufacturer. It can be installed in the 1.25" focuser; a special adapter is included in the package. The camera works when it is connected to a computer via a standard USB cable. It does not require any additional power source as it is recharged directly from the computer. To work with the camera, special software is used (the CD is included). It allows you to process saved images: resize, adjust brightness and contrast, save pictures and videos.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection.
If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.
The kit includes:
- Levenhuk telescope digital camera
- Adapter (31.75mm / 1.25'')
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
|Sensitivity, v / lux.sec @ 550 nm||0.31|
|Exposure time, ms||0.4–2000|
|Frame rate, frames per second@resolution||1.9@3264x2448 |
|Active range, dB||65.2|
|Application||31.75-mm (1.25") diameter focuser, instead of an eyepiece|
|Image format||*.jpg, *.bmp, *.png, *.tif|
|Video format||recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later)|
|Spectral range||380–650 (built-in infrared filter)|
|Method of exposure||ERS (Electronic Rolling Shutter)|
|Software features||image size, brightness, exposure time|
|USB features||USB 2.0, 480 Mb/sec.|
|System requirements||Windows XP (32-bit), Windows Vista/7/8/10 (32-bit or 64-bit), Mac OS X, Linux, CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM.|
|Power supply||via USB 2.0 cable|
|Operating temperature range, °C, °F||-10... 50°C; 14… 122°F|
|Additionally||the camera is compatible with the Ekos StellarMate app (a StellarMate controller must be purchased separately)|
High-resolution images (zip) 58054kb
Levenhuk T800 PLUS Digital Camera - Total: 8 0 8
Hello, I'm using Levenhuk SkyMatic 127 GT MAK Telescope together with this camera and planing on taking the pictures of the Moon, but right now the magnification is too big and I cannot get an overall picture. Is there a way to get a less zoomed in image with the camera? Levenhuk Customer Service:
Hi Antonina, Thanks for the query. Please make sure there is no Barlow lens inserted. If there is, it should be removed to lower the magnification of your Levenhuk SkyMatic 127 GT MAK. Also, you should start your observations with the lower magnification 26mm eyepiece.
What magnification can I expect? I have a 1200 mm focal length dobsonion. Levenhuk Customer Service:
Dear Lou, thank you for interest in Levenhuk products. An approximate focal length of the Levenhuk T800 PLUS Digital Camera is 10x. So the magnification of your telescope will be about 120x. Is there any additional information you might need?
Good day! I have a problem with the Levenhuk T800 PLUS Digital Camera installation. My machine is with elementary OS 0.4, Ubuntu "long-term support" version kernel (4.4). The software just doesn't recognize the camera. Thank You! Levenhuk Customer Service:
Dear Andrey, thank you for your inquiry. System requirements: Linux Ubuntu 14.04. Please try to connect the camera to another PC, maybe the issue with the OS. Check the Camera settings. If you use the camera on your PC, you need to turn it off. If you still have the issue, please contact our tech support at email@example.com
Hi ,I would like to know where could I get some more info about how to edit and process images with your T800 camera , something different than the users manual? Thanks Levenhuk Customer Service:
Dear Hector, thank you for your inquiry. You can find the quick start guide here online: https://www.levenhuk.com/products/materials/0/LevenhukLite-QuickStart-ML.pdf If you still need any assistance, please contact our tech support team by e-mail firstname.lastname@example.org
There is one review on B&H on the T800 and it is not good. Are there any others you are aware of Levenhuk Customer Service:
Dear Steven, thank you for interest in Levenhuk products! Our cameras are high quality and very popular. The only difference between our cameras is megapixels. The Levenhuk T800 Plus camera comes with 8 megapixeles. We have a 45-day return policy and lifetime warranty. Is there any additional information you might need?
Hi, Only a quick question: how do I will ensure the focus? Looking through the pc? Levenhuk Customer Service:
Dear Massimo, thank you for interest in Levenhuk products! You, need to focus the telescope the same way as you do it with an eyepiece. Yes, you need to look through the PC and focus if needed. Is there any additional information you might need?
В описание написано - Levenhuk T800 PLUS – 8-мегапиксельная камера для телескопа, с помощью которой вы сможете снимать галактики, туманности, звездные скопления, Луну, планеты Солнечной системы и другие астрономические объекты А в Технических характеристиках написано что - Время выдержки, мс 0,4–2000 Вопрос - как можно снять с помощью этой камеры туманности если максимальная выдержка камеры всего 2000мс(2 секунды) если для того, что бы снять туманности нужна выдержка намного больше чем 2 секунды! Levenhuk Customer Service:
Dear Vladimir, Thank you for your inquiry. We will double check it with our product manager and get back to you with a result shortly. Where did you buy the camera? Looking forward to your reply.
which eyepiece corresponds to the lens of this camera? Levenhuk Customer Service:
Levenhuk T800 PLUS Digital Camera is not comparable with the eyepiece. more
