Levenhuk M130 BASE Digital CameraA modern microscope digital camera
The Levenhuk M130 BASE Digital Camera makes your microscope a modern digital device. With its help, you can save all of the interesting moments of your observations: make photos of the microscope samples or even record a video of the whole observing process. Levenhuk M130 BASE camera is irreplaceable during lectures and presentations – you can disp... more
|
The Levenhuk M130 BASE Digital Camera makes your microscope a modern digital device. With its help, you can save all of the interesting moments of your observations: make photos of the microscope samples or even record a video of the whole observing process. Levenhuk M130 BASE camera is irreplaceable during lectures and presentations – you can display everything that is happening under the microscope objective on a big screen in real time.
This camera can be used with biological and stereoscopic microscopes of any other brand that feature an eyepiece tube of 23.2mm diameter. Using an adapter (purchased separately), you can install the camera on microscopes of other diameters. The camera is installed in place of an eyepiece and is connected to a PC or laptop via USB cable. To use everything this camera has to offer, do not forget to install Levenhuk image processing software (CD is included in the kit).
The kit includes a CD with special software that allows you to edit previously saved images: zoom them, crop them, change the contrast, and so forth.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection.
If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.
More information on compatibility of Levenhuk digital cameras and microscopes
The kit includes:
- Levenhuk microscope digital camera
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
| Specifications | |
| Maximum resolution | 1280x1024 |
| Megapixels | 1.3 |

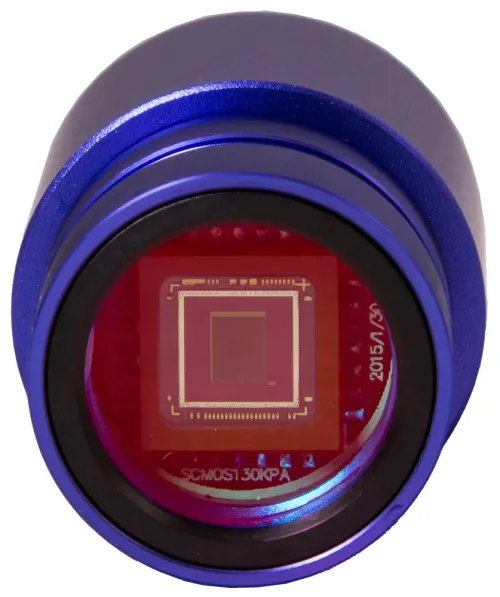

| Sensor | 1/3'' CMOS |
| Pixel size | 3.6x3.6 |
| Exposure time, ms | auto |
| Video recording | yes |
| Sensitivity, v / lux.sec @ 550 nm | 7.5@1280x1024 12.5@1024x768 12.5@800x600 |
| Application | eyepiece tube of 23.2mm diameter, instead of the actual eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later) |
| Spectral range | 380–650 (built-in infrared filter) |
| Method of exposure | ERS (Electronic Rolling Shutter) |
| White balance | auto/manual |
| Exposure control | auto/manual |
| Software features | image size, brightness, exposure time |
| USB features | USB 2.0, 480 Mb/sec. |
| System requirements | Windows XP (32-bit), Windows Vista/7/8/10/11 (32-bit or 64-bit), Mac OS X, Linux, CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM. |
| Software | Levenhuk |
| Casing | metal |
| Power supply | via USB 2.0 cable |
| Operating temperature range, °C, °F | -10... 50°C; 14… 122°F |
User manual: Microscope Digital Camera M BASE Series (pdf)
104kb
LevenhukLite Software: Quick Start Guide (pdf)
3436kb
High-resolution images (zip)
55700kb
LevenhukLite 4.11 software 2022-01 (zip)
233607kb
LevenhukLite 4.11 software macOS Monterey 2022-05 (zip)
36849kb
Levenhuk M130 BASE Digital Camera - Total: 2
0
2
(2022-02-16 07:35):
I am using the M300 BASE Digital Camera device on a nikon microscope (by replacing the eyepiece). Is there an adaptor to fit the device better on the microscope? Levenhuk Customer Service:
Hello Hung-Ji Tsai, Thank you for your request. We do not sell these adapters separately, but such adapters are included with the Levenhuk M PLUS series, which you may purchase from Amazon: https://www.amazon.co.uk/Levenhuk-M1000-PLUS-Digital-Camera/dp/B073RVBLZZ?ref_=ast_sto_dp&th=1 In case you only need an adapter - there are many of them available on Amazon. Just type in "microscope camera adapter".
(2018-11-08 12:46):
I am using the M130 Base camera in place of a 10X eyepiece. Is the magnification of the M130 10X also? Seems like it is more, or is it just a smaller field of view magnified digitally? Levenhuk Customer Service:
Dear Phil, thank you for your inquiry. Yes, the magnification of the camera is about 10x. Is there any additional information you might need?
