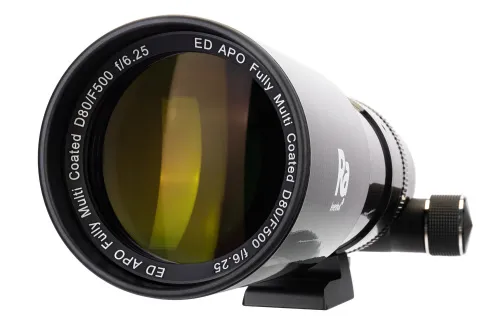

Levenhuk Ra R80 ED Doublet Carbon OTA

Levenhuk
Apochromatic refractor. Objective lens diameter: 80 mm. Focal length: 500 mm
  • Category: Telescope
  • Product ID: 35002
  • Country: PRC, controlled by Levenhuk, Inc. (USA)
  • Warranty: lifetime
  • Weight: 15 lb (6.8 kg)
  • UPC: 6900000350027
  • Package size (LxWxH): 22.8×14.6×8.7 in (58.0×37.0×22.0 cm)
  • Call us
    800-342-1706

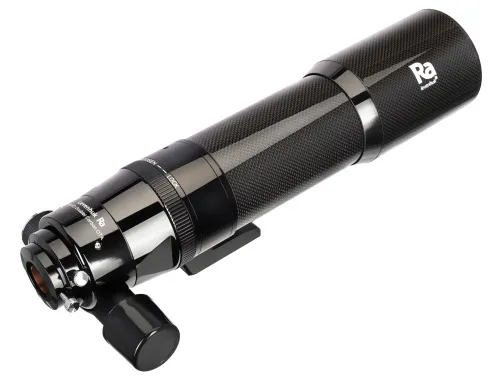

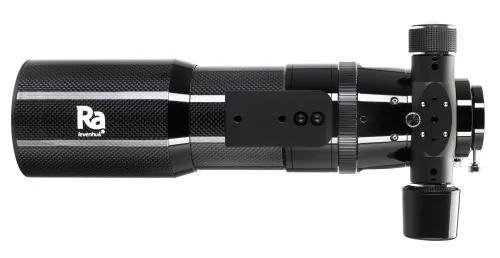

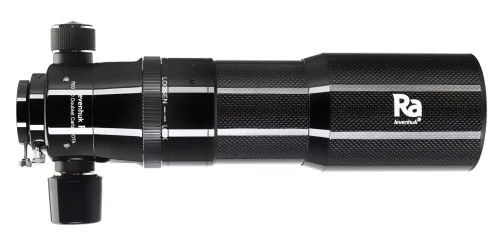

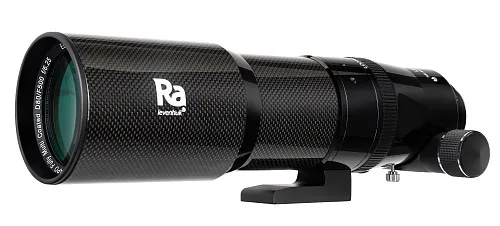

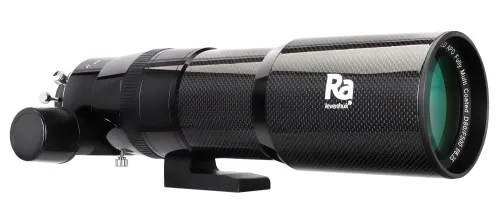

  Levenhuk Ra R80 ED Doublet Carbon OTA is a compact refractor for visual observations. It has a 80-mm (3.2-in) objective lens and a focal length of 500 mm (19.7 in). The telescope tube is made of carbon fiber, which makes it very lightweight and less susceptible to temperature changes of the surroundings. Due to the inherent characteristics of carbo... more

Levenhuk Ra R80 ED Doublet Carbon OTA is a compact refractor for visual observations. It has a 80-mm (3.2-in) objective lens and a focal length of 500 mm (19.7 in). The telescope tube is made of carbon fiber, which makes it very lightweight and less susceptible to temperature changes of the surroundings. Due to the inherent characteristics of carbon fiber and its high thermal conductivity, the telescope also requires far less time to adapt to outside temperatures than regular reflectors.

The apochromatic objective lens consists of two lenses that reduce chromatic aberration to a barely noticeable minimum. The fully multi-coated lenses are made of ED glass and yield crisp and clear views of the night sky. The retractable dew cap on the front end of the telescope tube protects the optics from humidity when needed most.

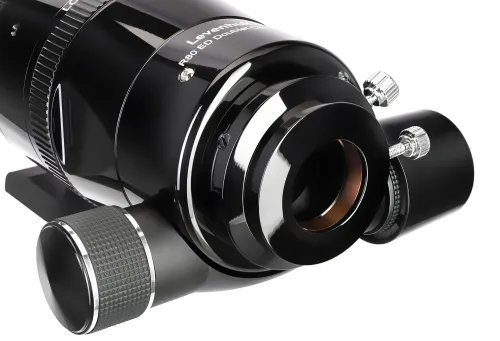

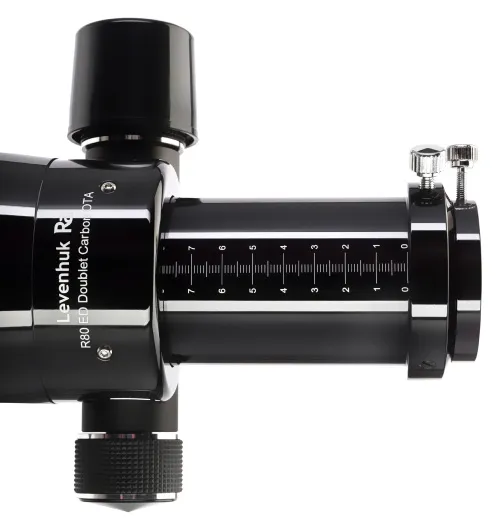

This telescope tube is fitted with a dual-speed Crayford focuser that guarantees high precision focusing with no backlash. The 1.25'' barrel diameter of the focuser allows you to use a number of accessories with this telescope. Levenhuk Ra R80 ED Doublet Carbon OTA also comes with an aluminum case for you to store and transport your telescope.

Try your hand at astrophotography with Levenhuk Ra R80 ED Doublet Carbon OTA – simply connect your DSRL camera to the optical tube using a T-ring and T2 mount.

The back focus of the refractor is 135.3 mm (5.3 in). The distance between the back of your camera and the front of a T2 mount is 80.3 mm (3.2 in).

You can find a review on Levenhuk Ra R80 ED Doublet Carbon OTA here.

Here you can find a list of celestial objects you can see with this telescope.

Find out the names of the most interesting celestial objects to observe here and here.

Optical design

apochromatic refractor

Objective lens

two-element

Optics material

ED glass

Optics coating

fully multi-coated

Objective lens diameter (aperture), mm

80

Focal length, mm

500

Focal ratio

f/6.25

Resolution threshold, arcseconds

1.45

Eyepiece barrel diameter

1.25

Focuser

2'' dual-speed Crayford

Tube-mount assembly system

quick-release thumbscrew

Optical tube material

metal / carbon fiber

Optical tube dimensions, mm
in

100.5x390
4x15.4

Optical tube weight, kg
lbs

2.8
6.2

Usage

General use product.
May be used by kids
over 3 years old.

Levenhuk Review:

You can find a review on Levenhuk Ra R80 ED Doublet Carbon OTA here.

Here you can find a list of celestial objects you can see with this telescope.

Find out the names of the most interesting celestial objects to observe here and here.

There are no recent reviews available for this product.

Levenhuk Ra R80 ED Doublet Carbon OTA - Total: 1 Negative 0 Positive 1


Janel Lubin (2013-08-31 09:42): Positive
What is included in the kit? Levenhuk Customer Service:

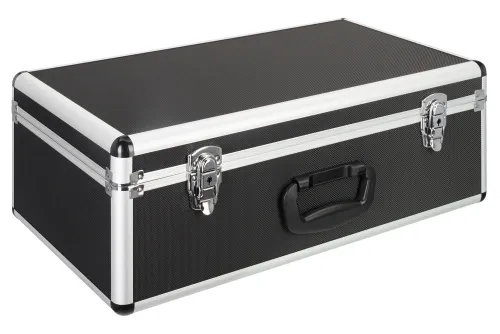

Levenhuk Ra R80 ED Doublet Carbon OTA comes with a sturdy aluminum case for safe and easy storing and transportation.
